Rapideye MI-1000 completes a single jaw scan with 20 μm accuracy in less than 30 seconds with image processing at 80 FPS (frames per second).
Captures high-detail single-tooth data at 10 µm accuracy for clean margins and confident restorative workflows.
Delivers full-arch scans with 20 µm accuracy, supporting stable alignment, occlusion checks, and lab-ready outputs.
The MI-1000 provides a wide field of view (16x14mm) in a compact and lightweight design. With its 16mm x 14mm wide field of view, the MI-1000 reduces your scan time by collecting more data in a single frame.
Multi-language support makes it easier for users to understand and use all the device's functions.
100 GB free, optionally expandable storage up to 2TB for fast data transfer

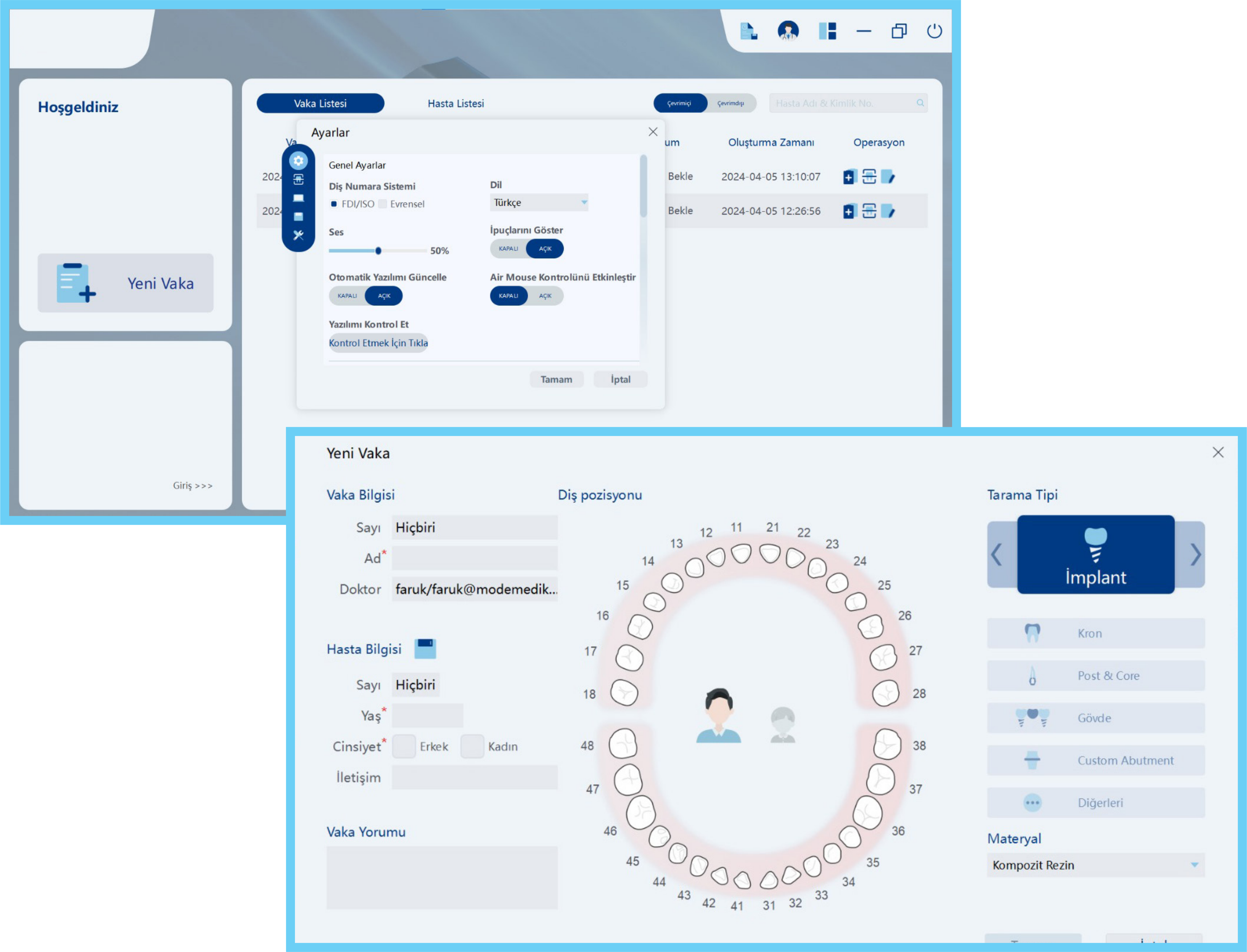

Smart screens to guidance the user during scanning
Free software update
View scan files in 3D in the cloud
Artificial intelligence prevents data overlaps by automatically removing soft textures.
With Improved Air Duct Design Anti-fogging LED light source
One-button air-mouse control keeps scanning commands at your fingertips for smoother, more comfortable chairside workflow.
Quickly toggle between upper jaw, lower jaw, and bite modes using a dedicated switch for seamless capture.
Automatically adapts to clinical lighting and surface reflections, adjusting light strength to maintain clear, optimal scan quality.
Self-calibrates with each use, ensuring uninterrupted performance while saving users time otherwise spent on manual calibrations.
Extra-light 182-gram handpiece reduces fatigue during longer procedures while preserving compact handling and maneuverability chairside.
Rapideye MI-1000 eliminates the mess of multiple cables with the ‘Plug-and-Play’ principle. The standard USB Type-C port is quickly connected to your PC with a single cable, without the need for fixed or special cables or intermediate adapters.
| RAPIDEYE MI-1000 | ||
|---|---|---|
| Scanning Technology | Scanning Area |
Standard Scanner Tip (L): 16 x 14mm Small Scanner Tip (S): 12 x 12mm |
| Full-arch | 20.0µm | |
| Scanning Frame | 80 FPS | |
| Anti-fogging | Available | |
| Handpiece | Weight | 182 gr. |
| Dimensions | 217 x 54 x 24mm | |
| Cable | Length | 1.8m/Replaceable Cable |
| Connection | USB 3.0 Type-C | |
| Calibration | Accuracy Calibration | Automatic |
| Color Calibration | Automatic | |
| Data | Format | STL / PLY |
| Scanning Tip | Autoclavability | 121°C 30 min. / 134°C 4 min. |

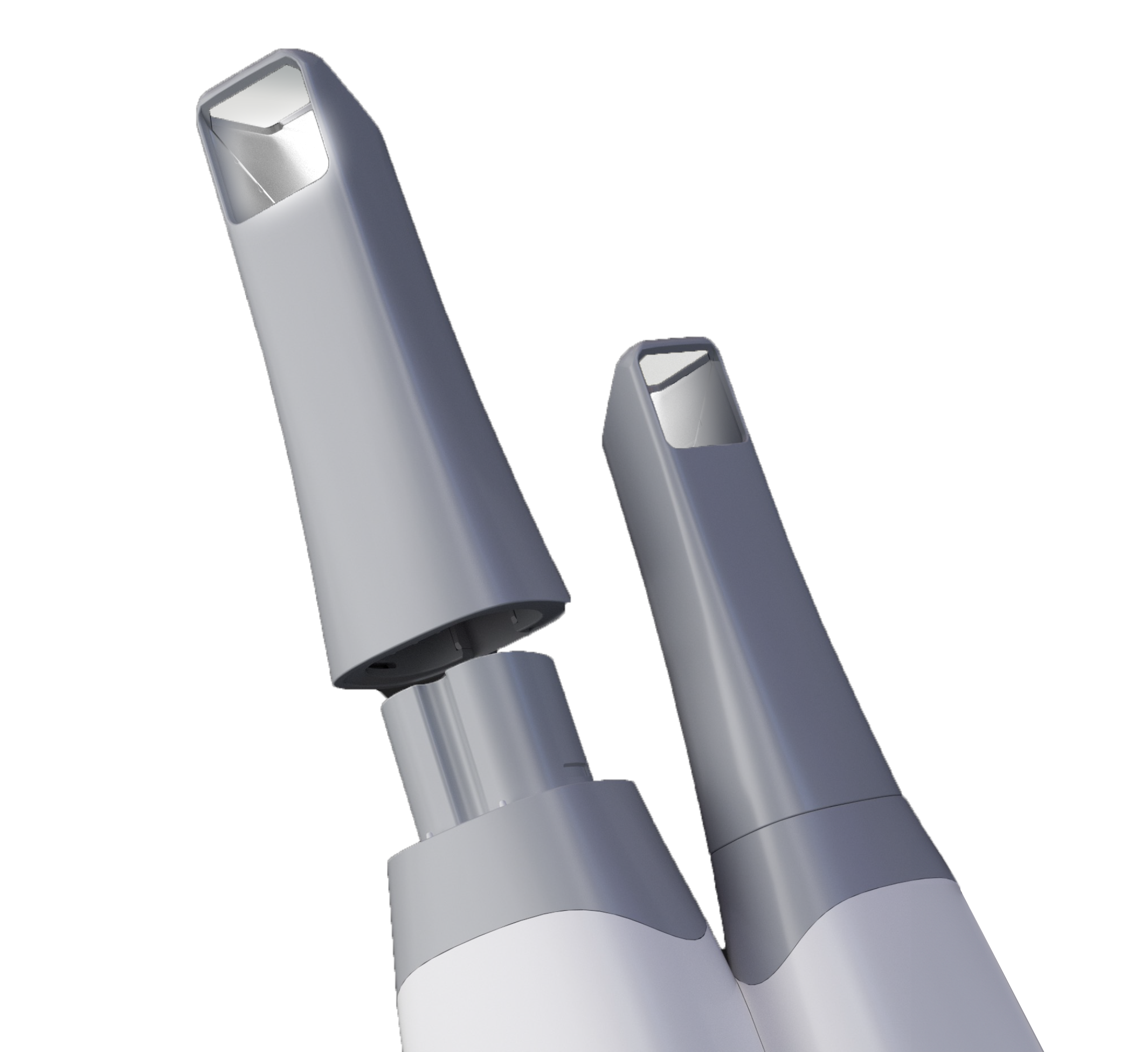

| Tip Size |

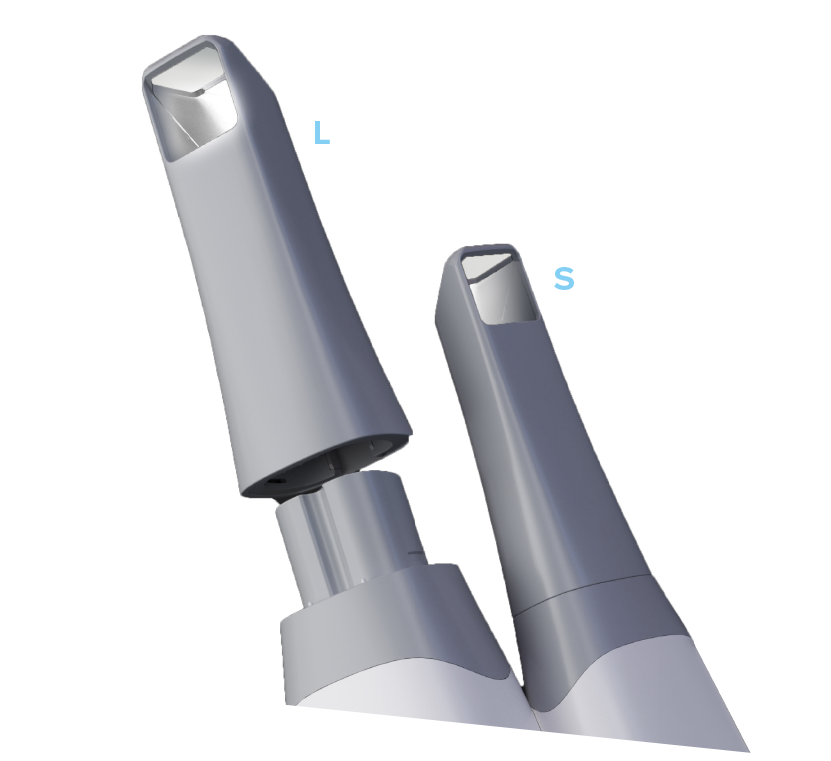

Standard Scanner Tip (L): 22 x 18mm Small Scanner Tip (S): 18.6x16.7mm |
|
| Reversible Tip | 180° Reversible Tip | |
